An aluminum pergola kit offers a ready-to-install outdoor structure that combines elegance and durability, providing shade and comfort in any weather with minimal effort.
Choose your size, color, and style — your pergola kit ships ready to assemble.
Price range: $5,949.30 through $12,249.30
| Pergola Size | 10' x 10', 10' x 13', 10' x 16', 13' x 13', 13' x 16', 13' x 19' |
|---|---|
| Color | anthracite-ral-7016, pergola-with-anthracite-colored-frame-and-white-slats-ral-7016-ral-9010, white-ral-9010 |
| Style | Freestanding, Wall Mounted |
Enjoy a perfect balance of quality and convenience with our premium Aluminum Pergola Kits. Designed for easy installation and lasting durability, they transform any outdoor area into a comfortable, stylish retreat.
Available in multiple pre-defined dimensions, our Pergola Kits are engineered for strength, precision, and effortless setup—no custom design required.
Made from high-grade aluminum and equipped with remote-controlled louvers, EG Pergola Kits provide reliable protection from sun, rain, and snow—built to last for years with minimal maintenance.
Each pergola is backed by a solid 5-year warranty for peace of mind and long-term performance.
High-quality materials, innovative engineering and tailored solutions — pergolas that don’t just protect, but extend your living space.
When closed, the louvers protect against rain — rainwater drains away through downpipes integrated in the posts.
Tiger-brand coating quality and the Qualicoat seal for maximum durability and UV resistance.

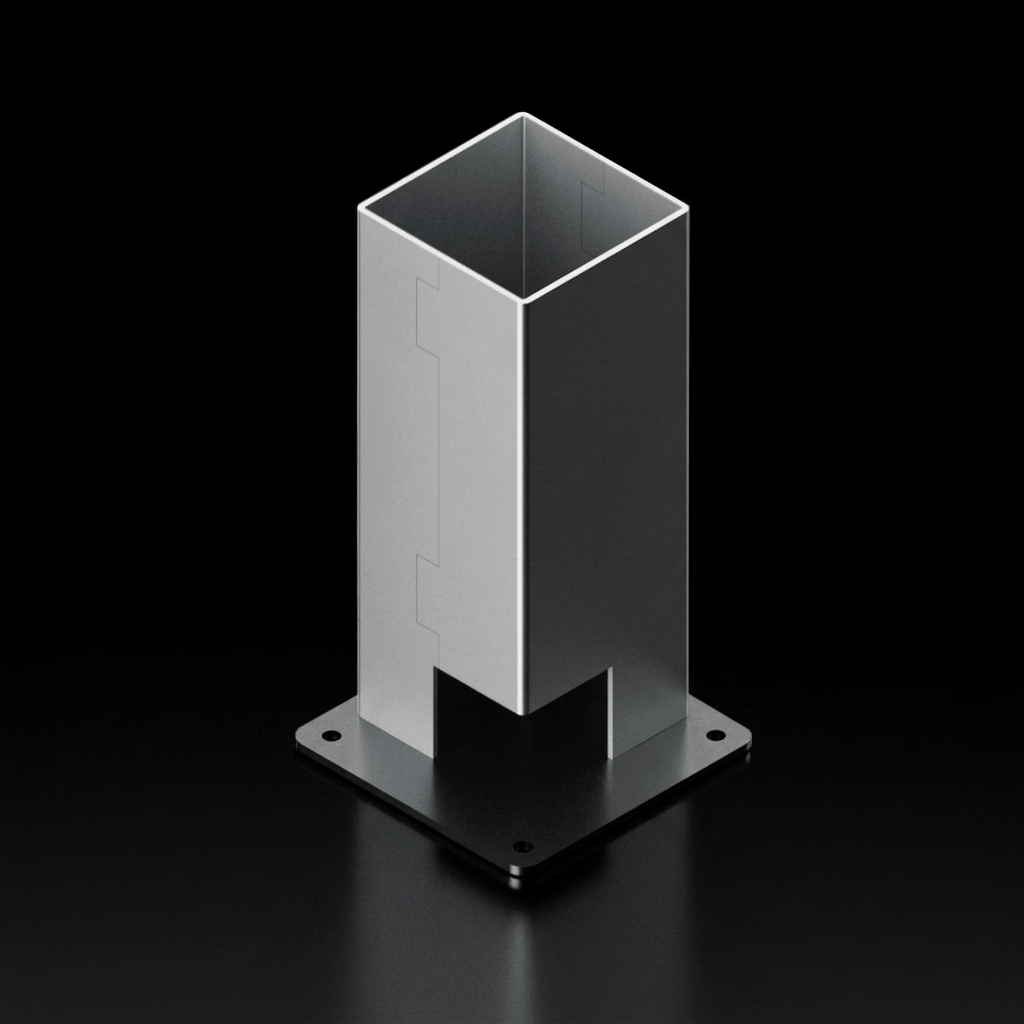

Security starts at the ground — our newly developed, reinforced foot connections set new standards in robustness and durability.
Assembling a pergola used to be complicated — with our practical fittings it is now quick and effortless.
Combines high water-tightness with easy assembly. All connections are made from special aluminum materials for outstanding performance.
Remote-controlled lighting shows your pergola in a whole new light — warm-white 3000 K for a pleasant, stylish atmosphere.
ENGINEERED FOR ALL SEASONS
Our pergolas are engineered for year-round use in Canadian weather. Every size is rated for wind speeds of up to 110 km/h — storm-force conditions — and the louvered roofs carry snow loads of up to 320 kg/m², depending on the model and size you choose.
Closed, the louvers form a waterproof roof that drains rainwater through the integrated gutters and posts. In winter, simply tilt the louvers open so snow falls through instead of resting on the roof.
In heavy snowfall we recommend tilting the louvers to the vertical position to minimise the load on the roof.
| Model | Wind resistance | Snow load |
|---|---|---|
| Pergola Piano | 110 km/h | 65 – 120 kg/m² |
| Pergola Mezzo | 110 km/h | 160 – 320 kg/m² |
| Pergola Equa | 110 km/h | 160 – 320 kg/m² |
FIND YOUR FIT
Three louvered aluminum pergolas, one build quality. Compare the roofs, sizes and load ratings to find the model that fits your terrace.
| Specification | Pergola PianoView model | Pergola MezzoView model | FlagshipPergola Equa |
|---|---|---|---|
| Louver profile |  | |  |
| Roof operation | Manual louvered roof (crank handle) | Electric louvered roof (remote control) | Electric louvered roof (remote control) |
| Available sizes | 10’×10’10’×13’10’×16’ | 10’×13’10’×16’13’×13’13’×16’13’×19’ | 10’×13’10’×16’10’×19’11’×13’11’×16’11’×19’13’×13’13’×16’13’×19’ |
| Integrated LED lighting | Optional (add-on kit) | Included | Included |
| Snow load | 65 – 120 kg/m² | 160 – 320 kg/m² | 160 – 320 kg/m² |
| Wind resistance | 110 km/h | 110 km/h | 110 km/h |
| Waterproof when closed | |||
| Frame profile | 13.5 × 13.5 cm | 13.5 × 13.5 cm | 13.5 × 13.5 cm |
| Louver opening angle | 115° | 115° | 110° |
| Louver thickness | 1.5 mm | 1.5 mm | 1.7 mm |
| Post wall thickness | 2 mm | 2 mm | 2 mm |

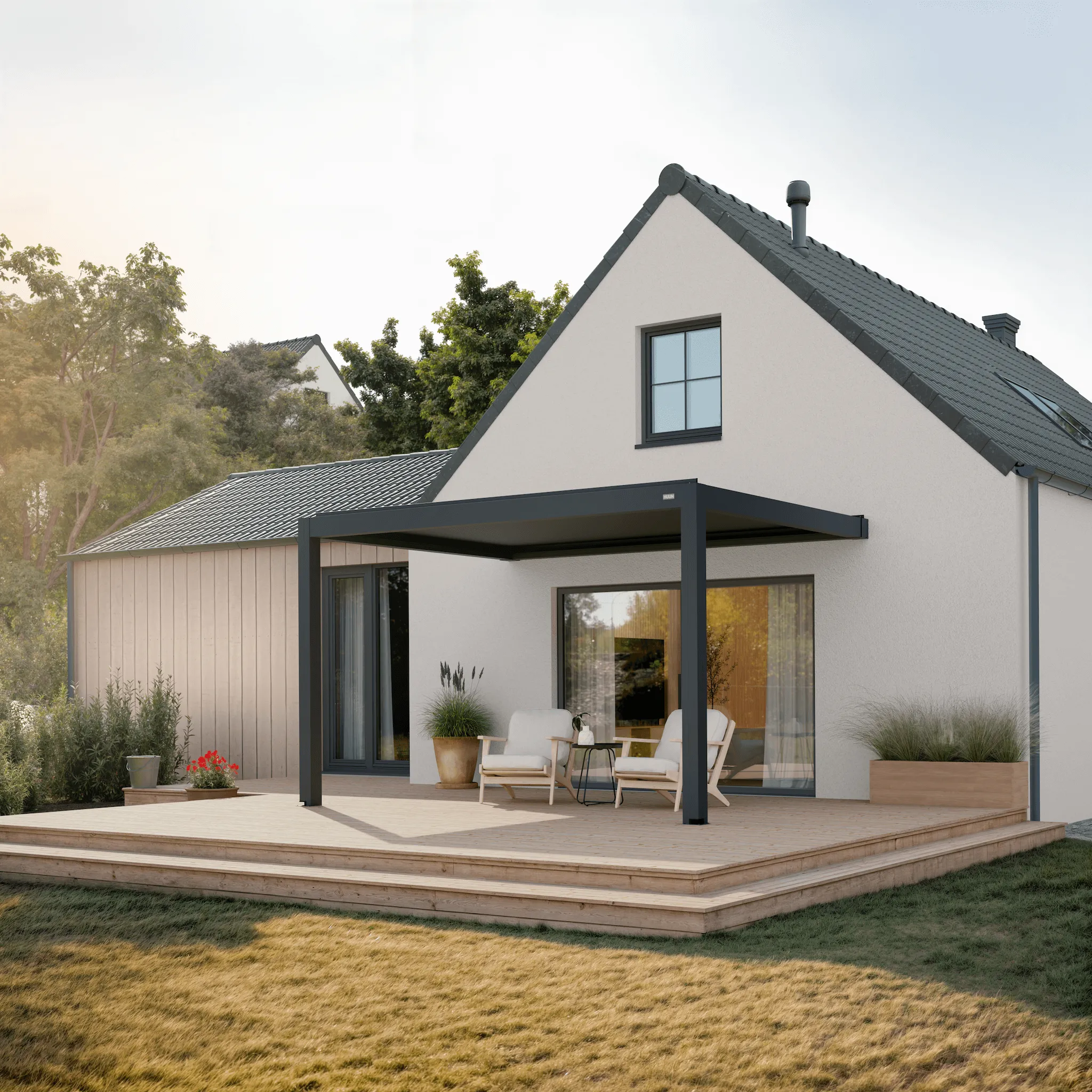

| Wall-mounted installation | One side (louvers parallel to wall) | One side (louvers parallel to wall) | Attachable from two sides |
| Maintenance | Maintenance-free | Maintenance-free | Maintenance-free |
| Side screens & accessories | Compatible with all accessories | Compatible with all accessories | Compatible with all accessories |
Not sure which model fits your space? Request a free quote — we’re happy to help you choose.
EXACT MEASUREMENTS
Pick your size to see the exact technical drawing — every dimension you need to plan your space.
Access step-by-step instructions, measurement details, and setup recommendations for your Rinova Pergola. This guide ensures a smooth installation and helps you get the most out of your pergola.
Everything you need to know about our manual and motorized louvered pergola kits.
A motorized pergola is a modern louvered patio cover with an electric drive: the roof louvers are adjusted by remote control. It offers optimal protection from sun, rain, and wind while giving you maximum flexibility outdoors.

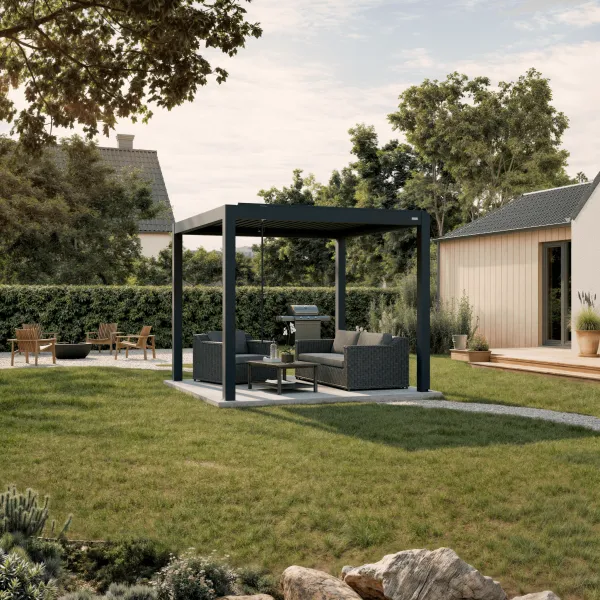

A manual pergola is a premium louvered patio cover without a motor: the roof louvers are adjusted by hand, via a crank. This solution is especially low-maintenance, durable, and cost-efficient.
A motorized pergola offers maximum comfort — the louvers align precisely at the push of a button, adapting instantly to the light without any physical effort. A manual pergola is fully independent of power sources and nearly maintenance-free: the cost-efficient choice with the same first-class sun and rain protection, and no electrical installation to speed up assembly.
Not at all. The optimized crank system is designed so the louvers open and close smoothly with minimal effort, and the ergonomic design lets you control the light precisely in seconds.
Our aluminum pergolas are ideal for patios, gardens, balconies, restaurant and café terraces, and commercial outdoor areas — the robust construction is well suited to the Canadian climate.
Regulations vary by municipality and by the size of the pergola. Because pergolas are often considered light or temporary structures, a permit is frequently not required — but we recommend a quick check with your local building department.
Yes. The powder-coated aluminum construction is rust-free and UV-resistant, and with the louvers fully closed the roof is watertight — the integrated drainage system channels rainwater away in a controlled manner.
Yes — it provides sun protection in summer and withstands snow loads and heavy rain in winter. During extreme snowfall, simply tilt the louvers to the vertical position so snow falls through instead of resting on the roof.
Powder-coated aluminum — particularly durable, stable, and easy to care for. Unlike wood, aluminum needs no regular re-treatment.
With the louvers closed, rainwater is channeled in a controlled way into the frame profiles and down through the posts — invisibly, so your patio furniture stays dry.
We use powerful, whisper-quiet electric motors developed specifically for pergola systems. Noise is minimal, so the relaxed atmosphere on your patio isn’t disturbed. Control is by wireless remote.
The system is optimized for DIY assembly. With detailed instructions and pre-assembled components, 2–3 people can typically build the pergola in a day — experienced DIYers assemble the manual standard sizes in about 3 to 5 hours.
The motorized model only needs a standard power connection for the motor; we recommend having the wiring done by a professional for safety. The manual model needs no electrician and is ready to use right after mechanical assembly.
Concrete, stone, wood decks, or prepared foundations. For wind stability, the posts must be firmly bolted to a solid base.
You get a 5-year warranty on the aluminum structure and a 2-year warranty on the motor unit and electronic components (or on the crank system and moving louver mechanisms for manual models). The warranty covers material and manufacturing defects; damage from improper use or extreme weather events is excluded.
If transport damage occurs despite our strict quality controls, note it on the carrier’s delivery slip and contact our customer service with a photo of the damage — we’ll replace the affected parts immediately and free of charge.
